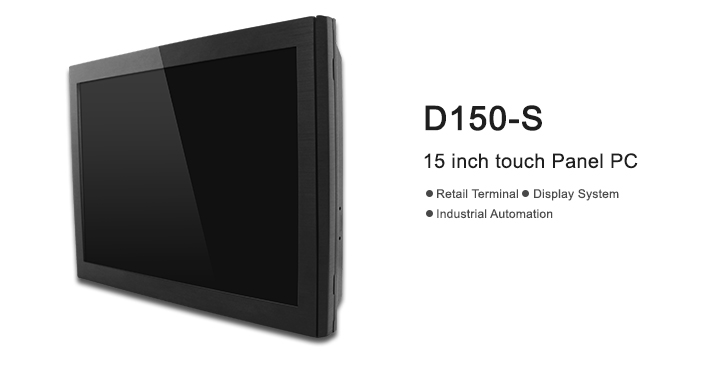

  • D150-S is a 15 inch all in one panel pc system with Intel 7th & 6th Core-i based platform for rich performance. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front. All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

    Retail Terminal

    • Retail POS Terminal
    • Self service Terminal
    • Hospitality Terminal

    Display System

    • Digital Signage Player
    • Clinical Monitor
    • Transportation Display

    Industrial Automation

    • Automation Controller
    • Embedded Device Dashboard
    • Production Line Controller

    • Kabylake/ Skylake Processor

    • IP65 in front

    • Full Regulation

    • Resistive touch or P-cap Touch

    • Dual LAN

    • Alumium front bezel w/ hairline pattern

    • 1024 x 768
      industry panel

    • 2 serial port


    • Core-i or Atom Processor
      Core-i or Atom Processor
    • Resistive touch or P-cap Touch (Direct bounding with panel)
      Resistive touch or P-cap Touch (Direct bounding with panel)
    • VESA 100 & Panel Mount
      VESA 100 & Panel Mount
    • Rear I/O cover to prevent misplug
      Rear I/O cover to prevent misplug
    • Alumium front bezel w/hairline pattern
      Alumium front bezel w/hairline pattern
    • PCIe Expansion option
      PCIe Expansion option
    • IP65 in front
      IP65 in front
    • Fan & Fan-less design
      Fan & Fan-less design



    LCD
    Display Type 15" TFT-LCD
    Max. Resolution 1024 x 768
    Max. Colors 16M (8 bit/color)
    Luminance 350 cd/m2
    Viewing Angle 160°(H), 145°( V)
    LED Backlight (Hours) 50,000
    TOUCH SCREEN
    Type P-CAP / resistive
    Touch Screen True-flat 10 points
    SYSTEM
    PH12SI Processor 6&7th Generation Intel® Core™ i Series LGA1151 Socket Processor, TDP
    Max. 35W
    Chipset Q170
    System Memory DDR4 2133MHz, 260-pin SO-DIMM x 2, Max. 32GB (Non-ECC)
    Ethernet Intel®I219-LM Giga LAN + Intel® I211-AT Giga LAN
    I/O Port DC Jack x 1
    USB3.0 x 4
    RJ45 x 2
    DP x 1
    HDMI x 1
    Line-out x 1, Mic-in x 1
    RS232 x 2
    Watchdog Timer 1~255 steps by software program
    Storage Disk Drive SATA 2.5” HDD/SSD bay x 1
    Expansion Slot 1 x PCI Express Full Mini Card slot
    1 x PCI Express Helf Mini Card slot
    Stereo Speaker 2W x 2
    OS Support KBL: Windows 10 64bit, Linux (support by request)
    SKL: Windows 7 32/64bit, Windows 10 64bit, Linux (support by request)
    POWER REQUIREMENT
    Power Input DC 12V
    Power Adapter AC to DC, DC12V / 7A,84W adaptor
    MECHANICAL
    Mounting VESA 100 / Stand

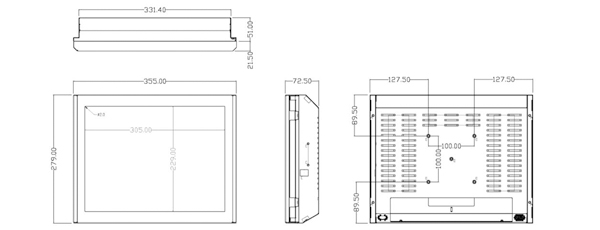

    Dimension 280 x 355 x 55 (mm)
    Weight 5kg (11.1 lb)
    ENVIRONMENTAL
    Operating Temperature -20°C ~ 50°C
    Storage Temperature -20°C ~ 70°C
    Storage Humidity 10% ~ 90% @40°C non-condensing
    Vibration Resistance TBD
    Shock Resistance TBD
    EMC CE, FCC Class A
    Front Panel Protection IP65 Compliant

    Ordering Information

    System I/O
    SKU NAME Chipset Touch VGA/DVI DP/HDMI USB 3.0 / 2.0 Line in/ Line out / Mic-in PS/2 RS-232 LAN Wifi/BT POWER
    D150-SR Q170 Resistive 0/0 1/1 4/0 0/1/1 0 2 2 Optional DC-in 12V(2.5mm/ ID, 5.5mm/ OD)
    D150-SP Q170 Pcap 0/0 1/1 4/0 0/1/1 0 2 2 Optional DC-in 12V(2.5mm/ ID, 5.5mm/ OD)
