D150-B is a 15 inch all in one panel pc system with either Intel Core-i based platform for rich performance or Intel Atom based platform for power-efficiency and fanless condition. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front. All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Retail Terminal

  • Retail POS Terminal
  • Self service Terminal
  • Hospitality Terminal

Display System

  • Digital Signage Player
  • Clinical Monitor
  • Transportation Display

Industrial Automation

  • Automation Controller
  • Embedded Device Dashboard
  • Production Line Controller

  • Core-i or Atom Processor

  • IP65 in front

  • Full Regulation

  • Resistive touch or P-cap Touch

  • Dual LAN

  • Alumium front bezel w/ hairline pattern

  • 10-finger touch Frameless

  • 4 serial port

  • Fan-less (For Atom platform)


  • Core-i or Atom Processor
    Core-i or Atom Processor
  • Resistive touch or P-cap Touch (Direct bounding with panel)
    Resistive touch or P-cap Touch (Direct bounding with panel)
  • VESA 100 & Panel Mount
    VESA 100 & Panel Mount
  • Rear I/O cover to prevent misplug
    Rear I/O cover to prevent misplug
  • Alumium front bezel w/hairline pattern
    Alumium front bezel w/hairline pattern
  • PCIe Expansion option
    PCIe Expansion option
  • IP65 in front
    IP65 in front
  • Fan & Fan-less design
    Fan & Fan-less design

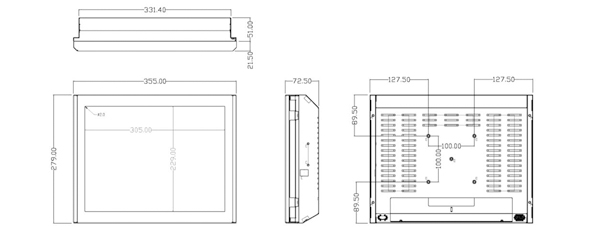

  • Dimension (L x W x H): 280 x 355 x 55.1 mm
  • Weight: ~5kg


Item Spec Description D150-BR D150-BP D150-LR D150-LP
LCD Display LCD size 15" TFT-LCD ✓ ✓ ✓ ✓
Brightness 250nits ✓ ✓ ✓ ✓
Resolution 1024 x 768 ✓ ✓ ✓ ✓
Viewing Angle 70° ( L/R ), 65° ( U/L ) ✓ ✓ ✓ ✓
Mechanical Size (W x D x H) 280mm x 355mm x 55.1mm ✓ ✓ ✓ ✓
Weight 5 kg ✓ ✓ ✓ ✓
Fixture VESA 75mm x 75mm / 100mm x 100mm, Panel Mount ✓ ✓ ✓ ✓
Button Power Button ✓ ✓ ✓ ✓
Audio 2W*2 Speakers ✓ ✓ ✓ ✓
Power Power Consumption 12V 84W adaptor ✓ ✓ ✓ ✓
Protection IP Rating IP65 Compliant in front ✓ ✓ ✓ ✓
System Cooling Passive Fanless ✓ ✓
Active With Fan ✓ ✓
Touch Screen Single touch 5 wires resistive touch ✓ ✓
Multi touch Projective Capacitive touch ✓ ✓
D150-B Form Factor Mini-iTX, 170 x 170mm ✓ ✓
CPU Intel Bay Trail-D J1900, QC,10W ✓ ✓
Memory 2 x DDR3L-1333 SO-DIMM (up to 8GB) ✓ ✓
Storage 1 x SATA2 for 2.5" HDD ✓ ✓
Expansion x 1 PCI Express x 1 slot ✓ ✓
x 1 PCIe Full-/Half-Mini Card slot ✓ ✓
x 1 PCIe Half-Mini Card slot ✓ ✓
Rear I/O 2 x RJ-45; 2 x USB 3.0, 2 x USB2.0, 1 x Line-Out,1 x Line-In, 1 x Mic-In, 1 x VGA-out, 1 x DVI, 4 x RS-232 (2 on board, 2 by fly cable) ✓ ✓
D150-L Form Factor Thin Mini-iTX, 170 x 170mm ✓ ✓
CPU Intel Haswell LGA1150 CPU Socket H3 (up to 35W) ✓ ✓
Chipset Intel Lynx Point Q87 Chipset ✓ ✓
Memory 2 x DDR3-1600 SO-DIMM (up to 16GB) ✓ ✓
Storage 1 x SATA3 for 2.5" HDD ✓ ✓
Expansion x 1 PCI Express x 4 slot ✓ ✓
x 1 PCIe Full-/Half-Mini Card slot ✓ ✓
x 1 PCIe Half-Mini Card slot ✓ ✓
Rear I/O 2 x RJ-45; 2 x USB 3.0, 2 x USB2.0, 1 x Mic-In, 1 x HD-out, 1 x DP-out, 2 x RS-232 (by fly cable) ✓ ✓
OS Operating System Win 7 Pro, Win 7 Embedded & Win 10 loT ✓ ✓ ✓ ✓
Linux ( Fedora, Ubuntu, SuSE, RehHat ) ✓ ✓ ✓ ✓
Environmental Operating Temp ‐20°C ~ +50°C ✓ ✓ ✓ ✓
Storage Temp. ‐20°C ~ +70°C ✓ ✓ ✓ ✓
Operating Humidity 10% ~ 90% (relative, n-condensing) ✓ ✓ ✓ ✓
Certification CE/FCC Class A ✓ ✓ ✓ ✓
Operating System Windows 7 32bit / 64bit, Windows 8.1 32bit / 64bit, Linux ( support by request )
